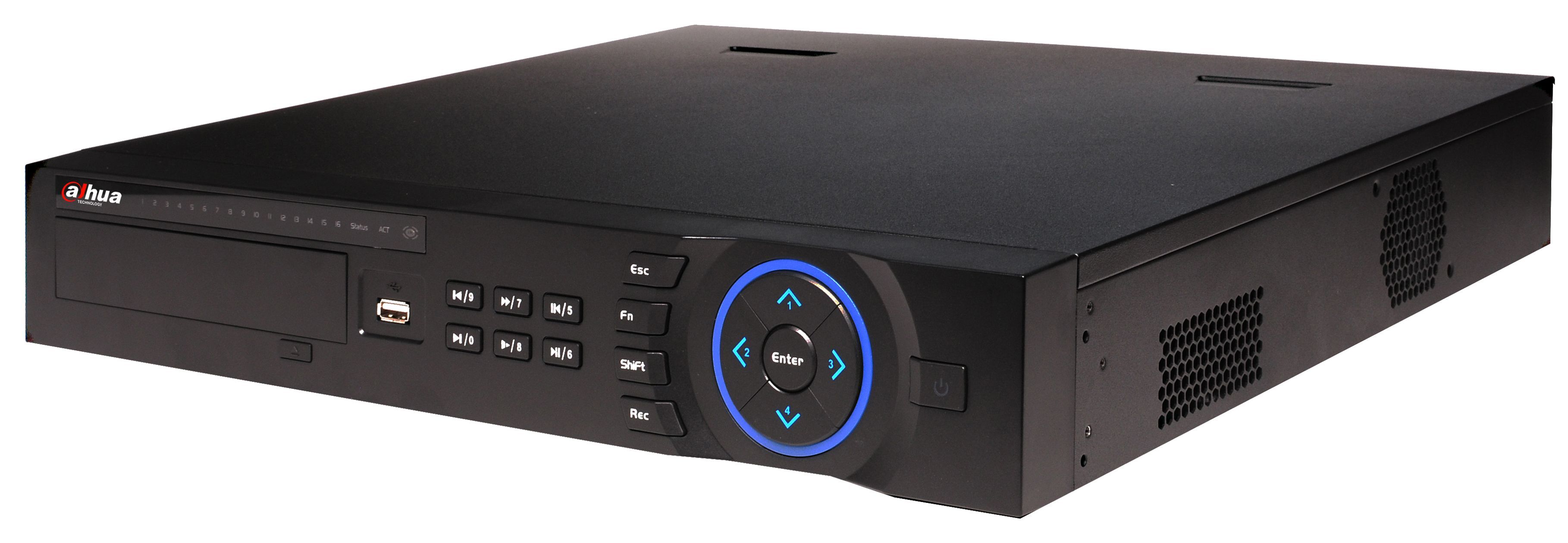

NVR4416-16P

NVR4416-16P
NVR4416-16P
Stručné informace:
Videorekordér IP síťový 16-kanálový OS Linux, Dual-core processor, přední ovládací panel, podporované formáty H.264, MJPEG, záznam Max. 200Mbps, maximální rozlišení 5MPx na kameru 1x audio vstup RCA, 1x audio výstup RCA, alarm I/O 16/4, 4 x SATA 3.5" HDD Max. 16TB (bez HDD), eSATA až 16TB, 1 HDMI + 1 VGA + 1 BNC, podpora ONVIF, podpora IP PTZ Dahua, 1x RJ45 port (10/100/1000 Mbps), 16x port PoE IEEE802.3af 2x USB 2.0, 1x RS485, 1x RS232, rozměry 1.5U, 440 × 410 × 70mm, hmotnost 6kg (bez HDD).
Objednávací kód:NVR4416-16P
Interní kód:E000-5305

Dostupnost:
není skladem
Pro zobrazení ceny se přihlaste nebo zaregistrujte.
Počet kusů:
Přidat do košíku

NVR4416-16P 16 kanálové záznamové zařízení NVR s 16x PoE

Videorekordér IP síťový 16-kanálový OS Linux, Dual-core processor, přední ovládací panel, podporované formáty H.264, MJPEG, záznam Max. 200Mbps, maximální rozlišení 5MPx na kameru 1x audio vstup RCA, 1x audio výstup RCA, alarm I/O 16/4, 4 x SATA 3.5" HDD Max. 16TB (bez HDD), eSATA až 16TB, 1 HDMI + 1 VGA + 1 BNC, podpora ONVIF, podpora IP PTZ Dahua, 1x RJ45 port (10/100/1000 Mbps), 16x port PoE IEEE802.3af 2x USB 2.0, 1x RS485, 1x RS232, rozměry 1.5U, 440 × 410 × 70mm, hmotnost 6kg (bez HDD).

>Up to 16/32 channel IP camera input
>H.264/MJPEG dual codec decoding
>Max 200Mbps incoming bandwidth
>Up to 5Mp resolution preview&playback
>HDMI/VGA/TV simultaneous video output
>16 channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB,2 USB(1 USB3.0)
>Support IPC UPnP, 16PoE ports
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS





Model DH-NVR4416-16P DH-NVR4432-16P
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 16 channel 32 channel
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface 1 HDMI,1 VGA,1 BNC
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9/16 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264/MJPEG
Resolution 5Mp（2560×1920）/3Mp（2048×1536）/1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)&etc.
Record Rate 200Mbps
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 16channel
Relay Output  4 channel
Playback & Backup
Sync Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
Network
Ethernet 1 RJ-45 port (10/100/1000Mbps)
PoE 16 ports (IEEE802.3at/af)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access 128users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 4 SATA ports, up to 16TB
External HDD 1 eSATA port
Auxiliary Interface
USB 2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS232 1 port, For PC communication& Keyboard
RS485 1 port, For PTZ control
General
Power Supply AC 100V~240V,50/60HZ
Power Consumption NVR: 40W (without HDD)
PoE: Max 25.5W for single port
Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension
(W×D×H)		 1.5U, 440mm×410mm×70mm
Weight 6KG(without HDD)
