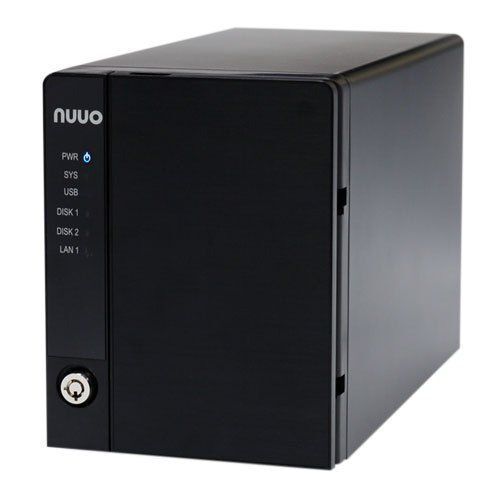

miniNVR 2040 IP DVR 4 IP CAM

miniNVR 2040 IP DVR 4 IP CAM
miniNVR 2040 IP DVR 4 IP CAM
miniNVR 2040 IP DVR 4 IP CAM
miniNVR 2040 IP DVR 4 IP CAM
miniNVR 2040 IP DVR 4 IP CAM
Stručné informace:
NVR systémy pro 4 IP kamery. Podporuje až 930 modelů IP kamer, komprese H264, MPEG4, M-JPEG, datová propustnost až 40Mbps, výkon záznamu záleží na použité IP kameře, duální stream, inteligentní SMART vyhledáváni, podpora až 2x3TB HDD SATA II, rozhraní LAN 1Gbps, 2x USB2, multijazyčné OSD menu, podpora POS, CMS a mobil klient pro mobilní telefony ( iPhone, iPad, Android, Blackberry, WindowsPhone), podpora až 256 on-line připojených klientů. Napájení 230V/max.40W
Objednávací kód:18-53
Interní kód:E001-2990

Dostupnost:

Archiv
Tento produkt byl již vyřazen z prodeje.
Product Image 2-bay Tower
 4-bay Tower
Model Name NE-2020 NE-2040 NE-4080 NE-4160
Maximum Number of Licenses 4 4 16 16
Base License 2 4 8 16
Recording Performance 40 Mbps 80 Mbps
Operating System Embedded Linux
Compression H.265, H.264, MPEG-4, MJPEG, MxPEG (depends on IP camera)
Remote Client Remote Live Viewer (Software), Remote Live Viewer (Web), iViewer (Mobile App)
Remote Client OS Windows XP (32-bit), Windows 7 (32/64-bit), Windows 8 (32/64-bit)
Mobile Client Platform iPhone, iPad, Android
HDD Bays 2 4
RAID Level 0,1 0,1,5,10
External Storage N/A DAS
Ethernet Port 1 x Gigabit Port, RJ-45 2 x Gigabit Port, RJ-45
External Ports 2 x USB 2.0 2 x USB 2.0, 2 x eSATA
Audio Two - way
Voltage 100-240V
Power Consumption 40W 90W
Dimensions (H x W x D) 140.0 x 109.8 x 219.0 mm 140.0 x 183.4 x 219.0 mm
Weight (without HDD) 2.12 kg (4.67lbs) 2.97 kg (6.55lbs)
Temperature Operating: 0° C ~ 40°C (32°F ~ 104°F)
Humidity Operating: 5% ~ 95%
Supported Languages English, Croation, Czech, Deutsch, Dutch, Finnish, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese (Brazil) , Russian, Simplified Chinese, Traditional Chinese, Serbian, Spanish, Swedish, Thai, and Turkish



NUUO NVRmini 2 is the lightweight, portable NVR solution with NAS functionality. Setup is simple and easy, with automatic port forwarding settings built in. NVRmini 2 supports POS integration, making this the perfect solution for small retail chain stores. NVRmini 2 also comes full equipped as a NAS, so you can enjoy the full storage benefits like easy hard drive hot-swapping and RAID functions for data protection. Choose NVR and know that your valuable video data is safe, always.

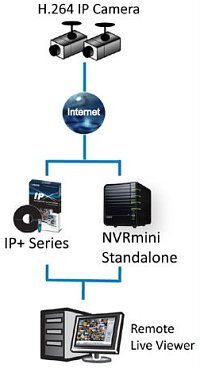

System Overview
Component  Description
Recording Server Recording Server is a NAS-based server which receives the streams from cameras. The main features are listed below.
  • Streams and records live video and audio from camera
  • Embedded Linux for high stability, more secure against virus attacks
  • Supports RAID 0, 1, 5*, 10 for maximum capacity of data protection
Web Viewer (Client) Web Viewer is the client to ask recording data from Recording Server. Remotely, users can connect to the recording server via web viewer (Internet Explorer. Windows Chrome and Mac Safari) to:
  • Configure the system
  • Monitor live video (up to 64 channels), and duplicate channel display with digital PTZ
  • Multiple camera streams to display
  • Playback recorded video (up to 16 channels)
Web viewer logs in to the Recording Server via 4 different user groups: administrator, power user, user, and guest. Each user group has its own distinctive privilege in system configuration, live view camera and playback camera.
Remote Live Viewer (Client) Remote Live Viewer application is used to monitor multiple NUUO servers (NVR, DVR, NDVR and NVRmini 2) simultaneously, featuring PTZ control, E-map and I/O panel. Dual monitor supports up to 128 channels, with 64 channels per monitor.
Remote Playback System (Client) Remote Playback application can play up to 16 channels of recording from any one of the NUUO servers (NVR, DVR, NDVR and NVRmini 2) simultaneously.
Remote Backup System Remote Backup application can be used to backup recording video and POS transaction remotely from NVRmini 2.
Other NUUO product supported • NUUO CMS: Ultimate central monitoring solution for large scale projects and
  projects with multiple sites. Fully compatible with all NUUO Mainconsole family servers (NVR, DVR, NDVR and NVRmini 2).
• POS: NUUO Point of Sale system works on NVRmini 2 by overlaying the transaction text from cash register onto the video image (liveview/ playback). All POS recordings are searchable.
• Remote I/O Box: I/O signals of NUUO I/O Box are converted to Ethernet using our NUUO box converter, which enables NVRmini 2 to perform actions such as starting recording when input triggered, triggering output as an event happened, and much more.
