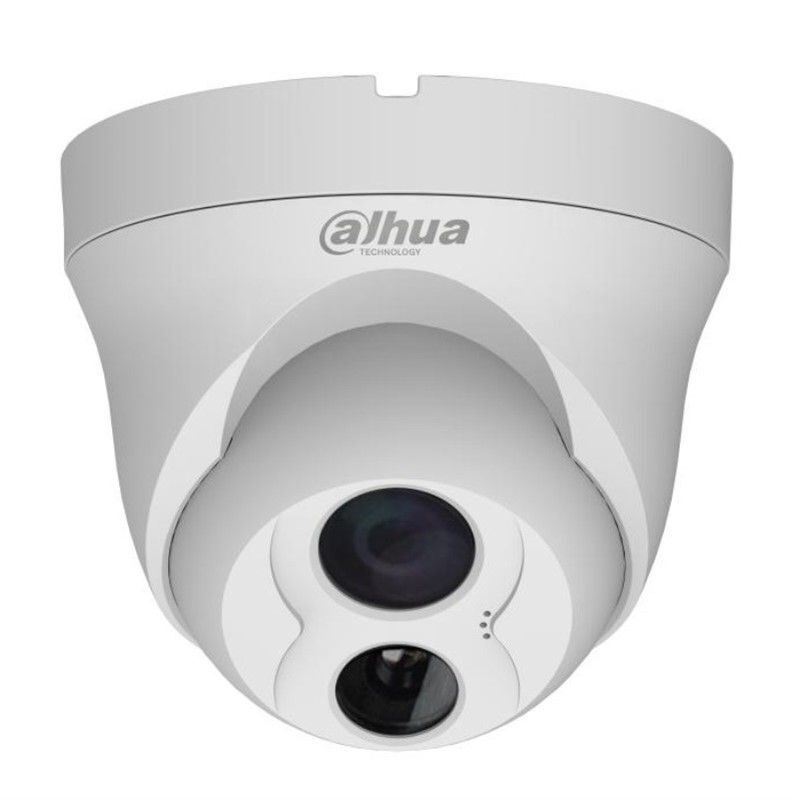

IPC-HDW4300CP-0360B 3Mpx kam

IPC-HDW4300CP-0360B 3Mpx kam
IPC-HDW4300CP-0360B 3Mpx kam
IPC-HDW4300CP-0360B 3Mpx kam
IPC-HDW4300CP-0360B 3Mpx kam
IPC-HDW4300CP-0360B 3Mpx kam
Stručné informace:
3 Mpx kamera Mini IP dome exteriérová D/N barevná s mechanickým IR filtrem, IR LED dosvit 30m,1/3" progressive scan Aptina CMOS, rozlišení 2052×1536 px 20fps, citlivost barevná 0.1LUX/F1.2, 0,005LUX/F1,2 (č/b), objektiv 3,6 mm, úhel záběru 72,5°, DWDR 3DNR, BLC, ONVIF, video komprese H.264/MJPEG, duální kódování, napájení 12VDC, 380mA, PoE IP66, IK10, rozměry Ø107,9mm x 84,1mm, hmotnost 0,4 kg
Objednávací kód:IPC-HDW4300CP-0360B
Interní kód:E000-4503

Dostupnost:

Archiv
Tento produkt byl již vyřazen z prodeje.

IPC-HDW4300CP-0360B  stropní IP 3MP kamera s objektivem 3.6mm

2 Mpx Full HD kamera Mini IP dome exteriérová D/N barevná s mechanickým IR filtrem, IR LED dosvit 30m,1/2.8" progressive scan Exmor CMOS, rozlišení 1920×1080 px 25fps, citlivost barevná 0.1LUX/F1.2, 0,01LUX/F1,2 (č/b), objektiv 3,6 mm, DWDR, 3DNR, BLC, ONVIF, video komprese H.264/MJPEG, duální kódování, napájení 12VDC, 380mA, PoE, IP66, IK10, rozměry Ø107,9mm x 84,1mm, hmotnost 0,4 kg

>1/3” 3Megapixel progressive scan Aptina CMOS
>H.264 & MJPEG dual-stream encoding
>Max 20fps@3M(2048x1536), 25/30fps@1080P(1920×1080)
>DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm, 6mm, 8mm optional)
>Max. IR LEDs Length 30m
>IP66, IK10, PoE





Model DH-IPC-HDW4300C
Camera
Image Sensor 1/3” 3Megapixel progressive scan CMOS
Effective Pixels 2052(H)x1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination 0. 01Lux/F1.2 (Color), 0.005Lux/F1.2(B/W);0Lux/F1.2(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (2.8mm, 6mm, 8mm optional)
Max Aperture F1.8 (F2.0, F1.6/F1.6)
Focus Control Manual
Angle of View H: 72.5° (90°, 44°, 33.2°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264 / MJPEG
Resolution 3M(2048´1536)/ 1080P(1920×1080)/ 720P(1280×720)/
D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate Main Stream 3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
Sub Stream D1(1~20fps)/CIF(1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps
Audio
Compression G.711a/G.711u/PCM
Interface Built-in MIC
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 4.5W
Working Environment -20°C~+60°C, Less than 95%RH
Ingress Protection IP66
Vandal Resistance IK10

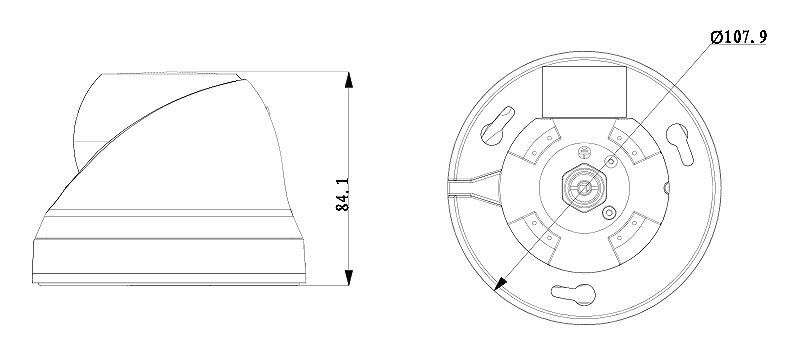

Dimensions Φ107.9mm×84.1mm
Weight 0.4kg
