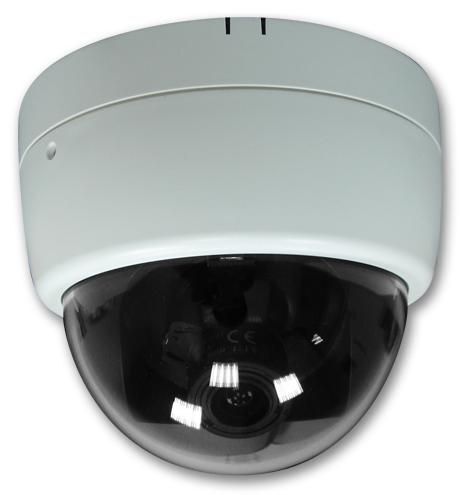

HLC-1NAD/P IP kamera

HLC-1NAD/P IP kamera
HLC-1NAD/P IP kamera
HLC-1NAD/P IP kamera
Stručné informace:
2MPix HD kamera den/noc v dome krytu s IR přísvitem 15m a objektivem 2,7 - 9mm; 1/3,2" CMOS, 0lx při IR; komprese H.264, MPEG-4, JPEG; kompatibilní s ONVIF; duplexní audio; slot na SD kartu; rozměry 132x132x108mm; napájení 12V DC nebo IEEE 802.3af Power over Ethernet
Interní kód:E000-2695

Dostupnost:

Archiv
Tento produkt byl již vyřazen z prodeje.

 2MPix HD kamera den/noc v dome krytu s IR přísvitem 15m a objektivem 2,7 - 9mm; 1/3,2" CMOS, 0lx při IR; komprese H.264, MPEG-4, JPEG; kompatibilní s ONVIF; duplexní audio; slot na SD kartu; rozměry 132x132x108mm; napájení 12V DC nebo IEEE 802.3af Power over Ethernet

Specifications
CPU ARM 9, 32 bit RISC
RAM 256MB
Flash 16MB
Image Sensor 1/3.2” CMOS (2 Megapixels)
Sensitivity 0 lux (IR on)
Support DC IRIS Yes
Lens Type Vari-focal 2.7~9mm, F1.2
Angle of View 30.4°~101° (horizontal)
23°~75° (vertical)
ICR Mechanism IR cut Filter (Optional)
LED Built-in 18 IR LED (optional)
IR Distance-15M (Optional)
I/O 1 in/ 1 Relay Out
Video Out 1.0Vp-p, 75Ω, BNC
Audio G.711 audio compression
Interface: Mic in
Support 2-way audio
Power Power 12V DC
Power Consumption: IR on 6.2W IR off 4.7W
PoE Class 0 (IEEE802.3af) , optional /
Power Consumption: IR on 8.8W, IR off 6.7W
3-Axis Bracket Adjustment Angle Pan: 172°
Tilt 30°~90°
Rotation 172°
Operating Temperature -10°C~40°C
Dimensions 132mm(Ø) x 108mm(H)
weight 680g
Network
Ethernet 10/ 100 Base-T
Network Protocol HTTP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA
System
Video Resolution 1600x1200, 1280x1024, 1280x960, 1280x720, 800x600,640x480, 320x240, 176x144
Video Adjust Brightness, Contrast, Sharpness, BLC, Night Mode
Triple Streaming Yes
Image Snapshot Yes
Full Screen Monitoring Yes
Privacy Mask Yes, 3 different areas
Compression Format H.264/ MJPEG/ MPEG4 (3GPP only)
Video Bitrates Adjust CBR, VBR
Motion Detection Yes, 3 different areas
Triggered Action Mail, FTP, Save to SD card, Relay, Samba
Pre/ Post Alarm Yes, configurable
Security Password protection
Firmware Upgrade HTTP mode, can be upgraded remotely
Simultaneous Connection Up to 10
SD card management
Recording Trigger Motion Detection, IP check, Network break down (wire only),schedule, Relay
Video Format AVI, JPEG
Video Playback Yes
Delete Files Yes
Client system requirements
OS Windows 2000, XP, 2003, Microsoft IE 6.0 or above
Hardware
Suggested Intel Dual Core 1.66G,RAM: 1024MB, Graphic card: 128MB
Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB
